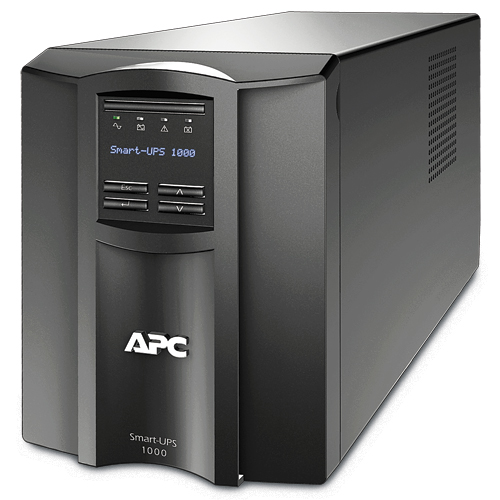

Thông tin sản phẩm APC Smart-UPS 1000VA LCD 230V 700W, SMT1000IC
Model: APC Smart-UPS 1000VA LCD 230V
PART #: SMT1000IC
- APC Smart-UPS, 1000VA/700W, Input 230V/Output 230V, Interface Port DB-9 RS-232, SmartSlot, USB
- Multi-function LCD status and control console "
Output
Output Power Capacity: 700 Watts / 1000 VA
Max Configurable Power: 700 Watts / 1000 VA
Nominal Output Voltage: 230V
Output Voltage Note:
Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion: Less than 5% at full load
Output Frequency (sync to mains):
47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
Other Output Voltages: 220, 240
Topology: Line Interactive
Waveform Type: Sine wave

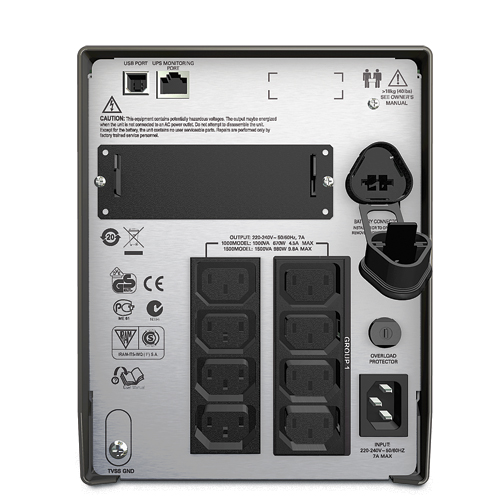

Output Connections:
(8) IEC 320 C13
(2) IEC Jumpers
Input
Nominal Input Voltage: 230V
Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections: IEC-320 C14
Input voltage range for main operations: 160 - 286V
Input voltage adjustable range for mains operation: 151 - 302V
Other Input Voltages: 220, 240
Batteries & Runtime
Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time: 3 hour(s)
Replacement Battery: RBC6
RBC™ Quantity: 1
Communications & Management
Interface Port(s): SmartSlot, USB
Available SmartSlot™ Interface Quantity: 1
Control panel: Multi-function LCD status and control console
Audible Alarm:
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO): Optional
Surge Protection and Filtering
Surge energy rating: 459 Joules
Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height: 219.00 mm
Maximum Width: 171.00 mm
Maximum Depth: 439.00 mm
Net Weight: 18.86 KG
Shipping Weight: 22.77 KG
Shipping Height: 376.00 mm
Shipping Width: 328.00 mm
Shipping Depth: 595.00 mm
Color: Black
Units per Pallet: 12.00
Environmental
Operating Environment: 0 - 40 °C
Operating Relative Humidity: 0 - 95%
Operating Elevation: 0-3000 meters
Storage Temperature: -15 - 45 °C
Storage Relative Humidity: 0 - 95%
Storage Elevation: 0-15000 meters
Audible noise at 1 meter from surface of unit: 41.00 dBA
Online Thermal Dissipation: 100.00 BTU/hr
