| Model |

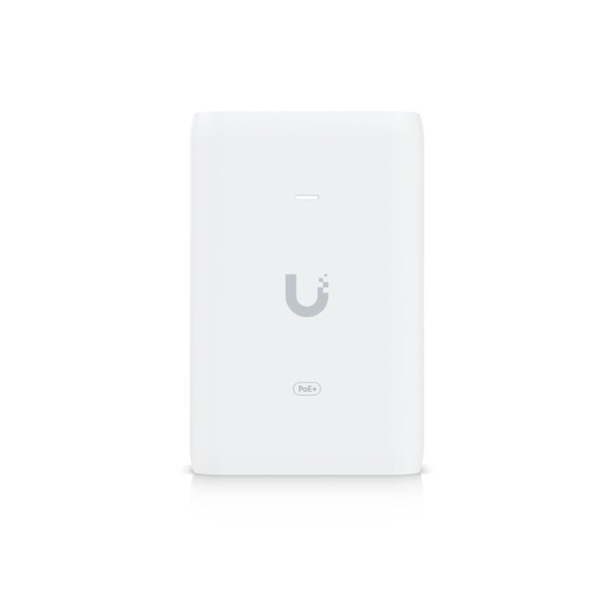

U-POE-at |
| Dimensions |
93 x 62 x 35 mm (3.66 x 2.44 x 1.38″) |
| Weight |
156 g (5.5 oz) |
| Output voltage |
48V DC @ 0.65A |
| LAN activity indicator |
No |
| Gigabit LAN port |
Yes |
| Remote reset capability |
No |
| Reset button |
No |
| Rated voltage |
100—240V AC @ 50/60Hz |
| Input current |
0.75A Max. |
| Inrush current |
<100A peak at 26_ |
| Efficiency |
87% |
| Output ripple |
1% max. |
| Switching frequency |
70 kHz max. |
| Line regulation |
≤ 3% |
| Load regulation |
≤ 5% |
| 2-pair powering |
Pins 4, 5 (+) and 7, 8 (-) |
| 4-pair powering |
No |
| AC connector |
IEC-320 C6 |
| Data In / PoE |
RJ45 shielded socket |
| Surge protection |
Difference and common mode |
| Clamping protection |
11V data, 60V power |
| Max. surge discharge |
1500A (8/20 μs) power |
| Peak pulse current |
36A (10/1000 μs) data |
| Shunt capacitance |
<5 pF data |
| Response time |
<1 ns |
| Ambient operating temperature |
0 to 40° C (32 to 104° F) |
| Storage temperature |
-30 to 70°C (-22 to 158° F) |
| Ambient operating humidity |
10 to 95% noncondensing |
| Certifications |
CE, FCC, IC, UL |
