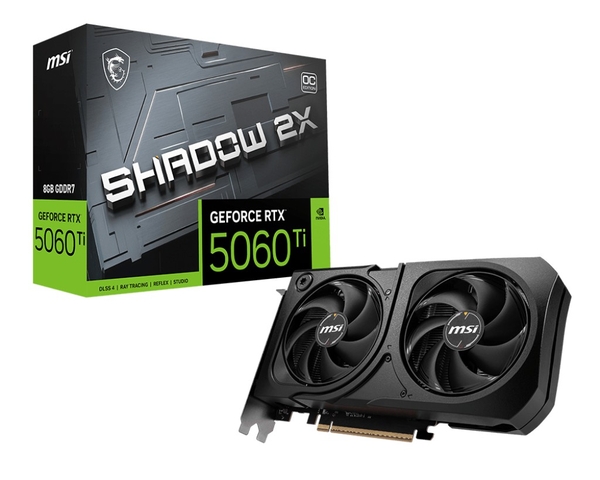

| Marketing Name | GeForce RTX™ 5060 Ti 8G SHADOW 2X OC PLUS |
| Model Name | G506T-8S2CP |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5060 Ti |
| Interface | PCI Express® Gen 5 x16 (uses x8) |
| Core Clocks | Extreme Performance: 2617 MHz • Boost: 2602 MHz |
| CUDA® Cores | 4608 Units |
| Memory Speed | 28 Gbps |
| Memory | 8GB GDDR7 |
| Memory Bus | 128-bit |
| Output | 3× DisplayPort 2.1b, 1× HDMI 2.1b |
| HDCP Support | Yes |
| Power Consumption | 180 W |
| Power Connectors | 1× 8-pin |
| Recommended PSU | 600 W |
| Card Dimension | 226 × 126 × 41 mm |
| Weight (Card / Package) | 553 g / 814 g |
| DirectX Version Support | DirectX 12 Ultimate |
| OpenGL Version Support | OpenGL 4.6 |
| Maximum Displays | 4 |
| G-SYNC® Technology | Yes |
| Digital Maximum Resolution | 7680 × 4320 |
