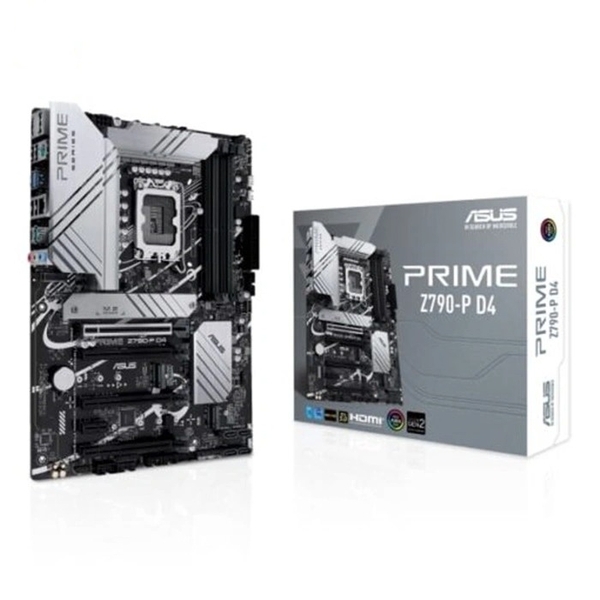

Mainboard Asus PRIME Z790-P D4-CSM DDR4
- Socket: Intel Socket LGA1700 hỗ trợ CPU intel thế hệ 13,Intel thế hệ 12. Pentium® Gold and Celeron® Processors
- Kích thước: ATX
- Khe cắm RAM: 4 khe (Tối đa 126GB)
- Khe cắm mở rộng: 1 x PCIe 5.0 x16 slot, 3 x PCIe 4.0 x16 slots (support x4 mode), 1 x PCIe 3.0 x1 slot
- Khe cắm ổ cứng: 3 x M.2 slots and 4 x SATA 6Gb/s ports
Thông số kỹ thuật
|
Sản phẩm |
Bo mạch chủ |
|
Tên Hãng |
Asus |
|
Model |
PRIME Z790-P WIFI D4-CSM |
|
CPU hỗ trợ |
Intel |
|
Chipset |
Intel Z790 Chipset |
|
RAM hỗ trợ |
4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)
5000(OC)/4800(OC)/4700(OC)/4600(OC)
4500(OC)/4400(OC)/4266(OC)
4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)
3333(OC)/3200/3000/2933/2800 2666/2400/2133 Non-ECC, Un-buffered Memory |
|
Khe cắm mở rộng |
Intel® 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
Intel® Z790 Chipset
3 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot |
|
Ổ cứng hỗ trợ |
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports |
|
USB |
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
* USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth |
|
Cổng kết nối (Internal |
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt™ (USB4®) Header |
|
Cổng kết nối (Back Panel) |
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port |
|
LAN / Wireless |
Vertical M.2 slot only (Key E, CNVi & PCIe)*
*Wi-Fi module is sold separately.
1 x Intel® 2.5Gb Ethernet |
|
Kích cỡ |
ATX Form Factor
12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) |
