TỔNG QUAN SẢN PHẨM

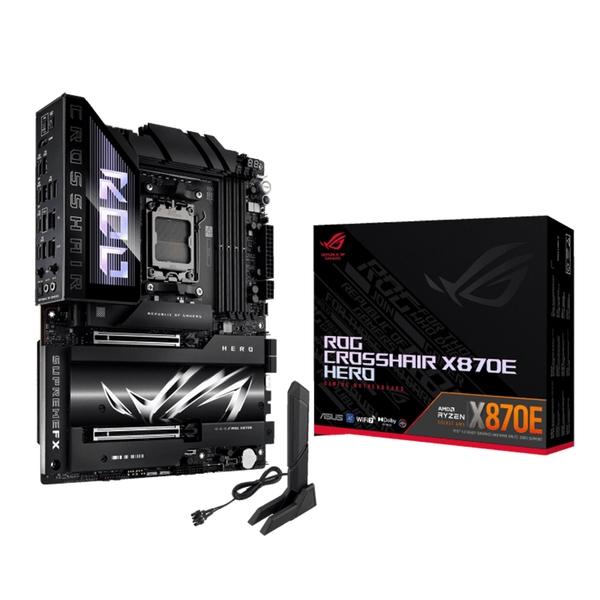

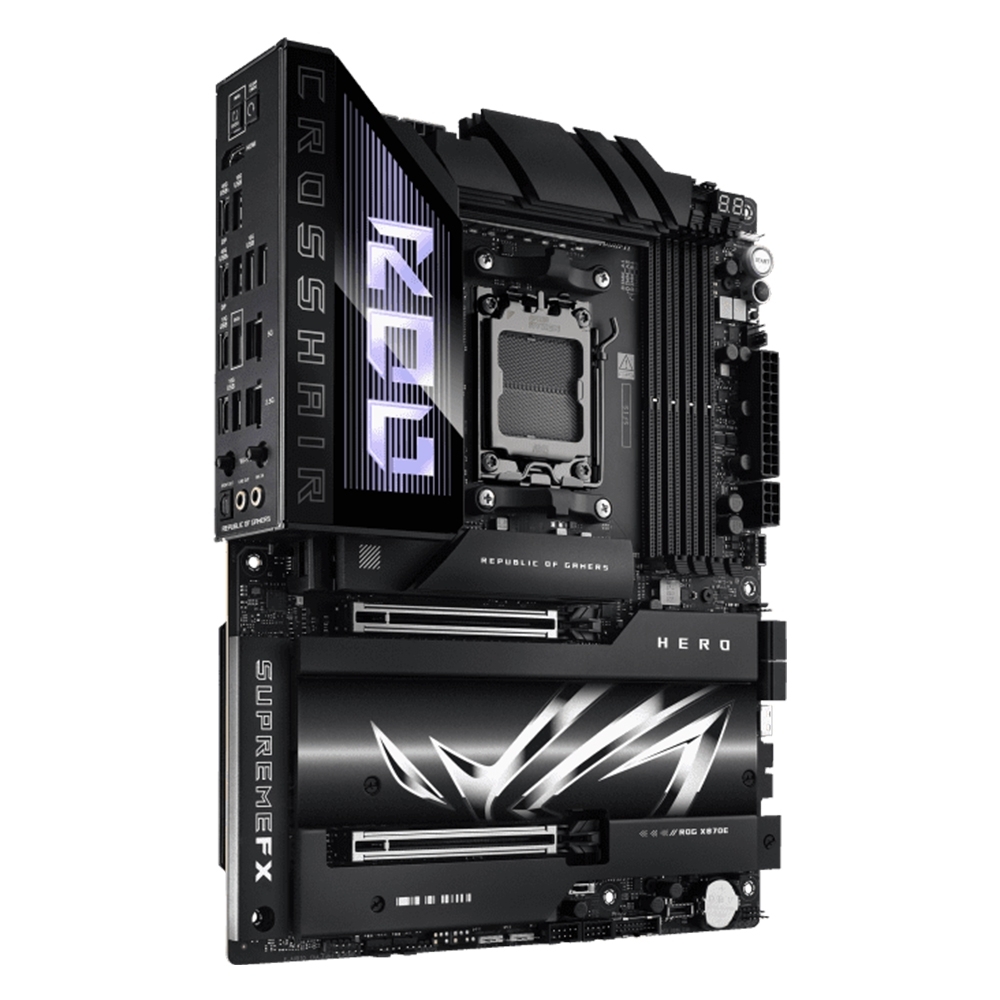

Mainboard Asus ROG CROSSHAIR X870E HERO (AMD X870/ Socket AM5/ ATX/ 4 khe ram/ DDR5/ 2.5 Gigabit LAN)
| Chipset | AMD X870 |
| Socket | Socket AM5 |
| Kích thước Main | ATX |
| Hỗ trợ CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Khe cắm RAM | 4 khe ram |
| Loại RAM | DDR5 |
| Bus RAM hỗ trợ | 4 x DIMM slots, max.192GB, DDR5 Supports up to 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, 8600+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory |
| Card đồ họa | 1 x HDMI™ port 2 x USB4® (40Gbps) ports support USB Type-C® display outputs Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. VGA resolution support depends on processors or graphic cards resolution. |
| Kết nối mạng | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Thông số (Lan/Wireless) | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate. Bluetooth® v5.4 |
| Khe cắm trong | Supports 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) M.2_3 slot (Key M |
| Khe cắm mở rộng | AMD Ryzen™ 9000 & 7000 Series Desktop Processors 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes) When you use both PCIEX16_1 and PCIEX16_2, PCIEX16_1 and PCIEX16_2 will run x8. When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4. AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled) AMD Ryzen™ 8500 & 8300 Series D |
| Cổng giao tiếp ngoài | 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®) 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Âm thanh | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC |
