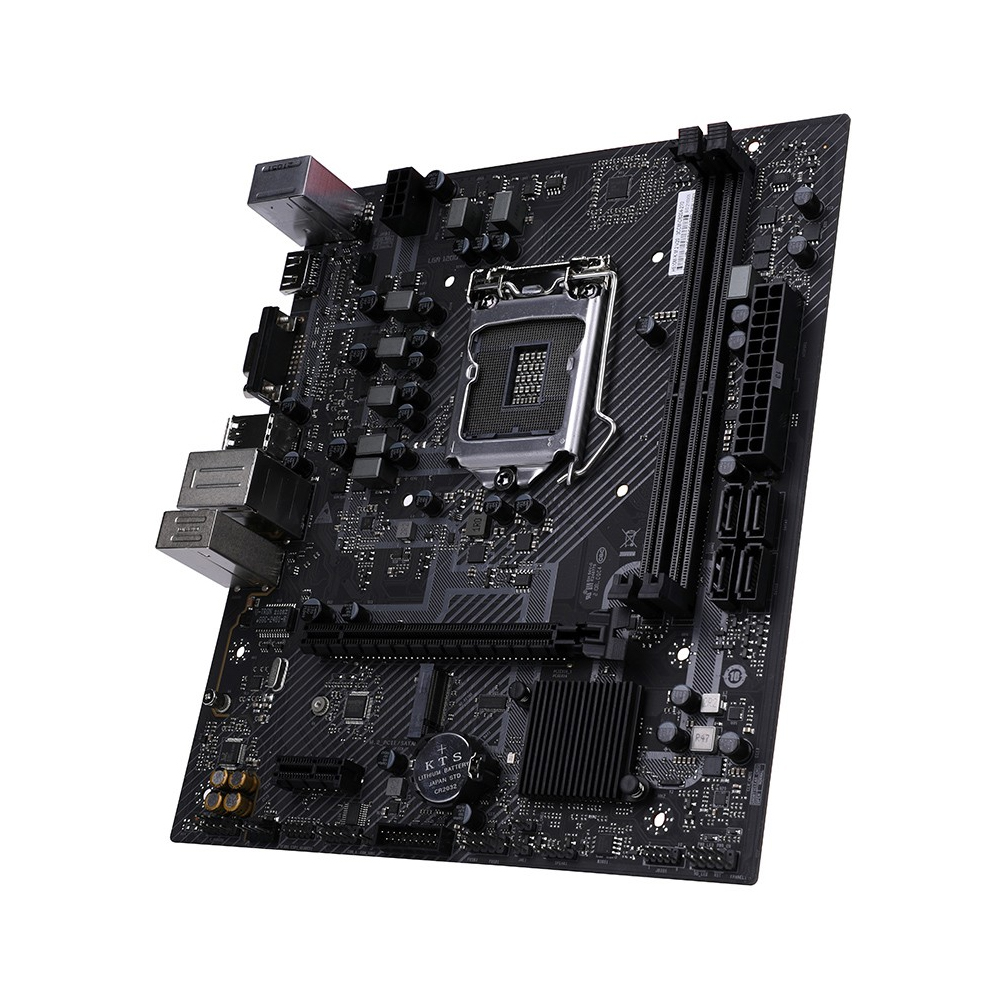

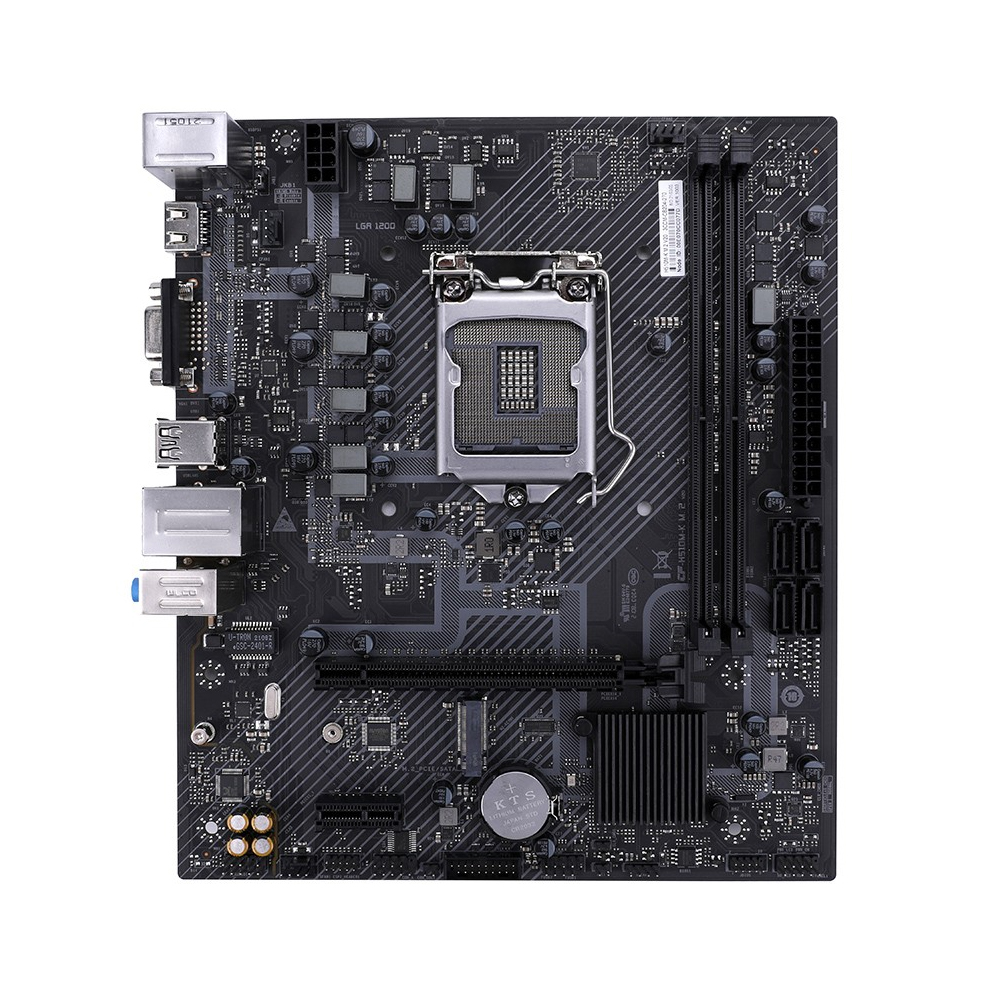

Cấu hình Mainboard Colorful H510M-K M.2 (Intel H510/ Intel LGA 1200/ M-ATX/ 2 khe ram)
| Chipset | Intel H510 |
| Socket | Intel LGA 1200 |
| Kích thước Main | M-ATX |
| Hỗ trợ CPU | Supports 10th and 11th Generation Intel® Core™ Processors (Socket 1200) |
| Khe cắm RAM | 2 khe ram |
| Loại RAM | DDR4 |
| Bus RAM hỗ trợ | 2 DIMM slots，support dual channel DDR4-3200/2933/2666/2400 MHz |
| Chi tiết Vga | 1x HDMI Support HDMI™ 1.4, maximum resolution of 4K 30Hz 1x D-Sub Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz |
| Kết nối mạng | 1Gb Ethernet |
| Thông số (Lan/Wireless) | Realtek® 8111H Gigabit LAN |
| Khe cắm trong | 1xPCI Express 4.0/3.0X16 slot |
| Khe cắm mở rộng | 1xPCI Express3.0X1 slot,1xM.2 slot(support PCIE Gen 3 x4&SATA SSD |

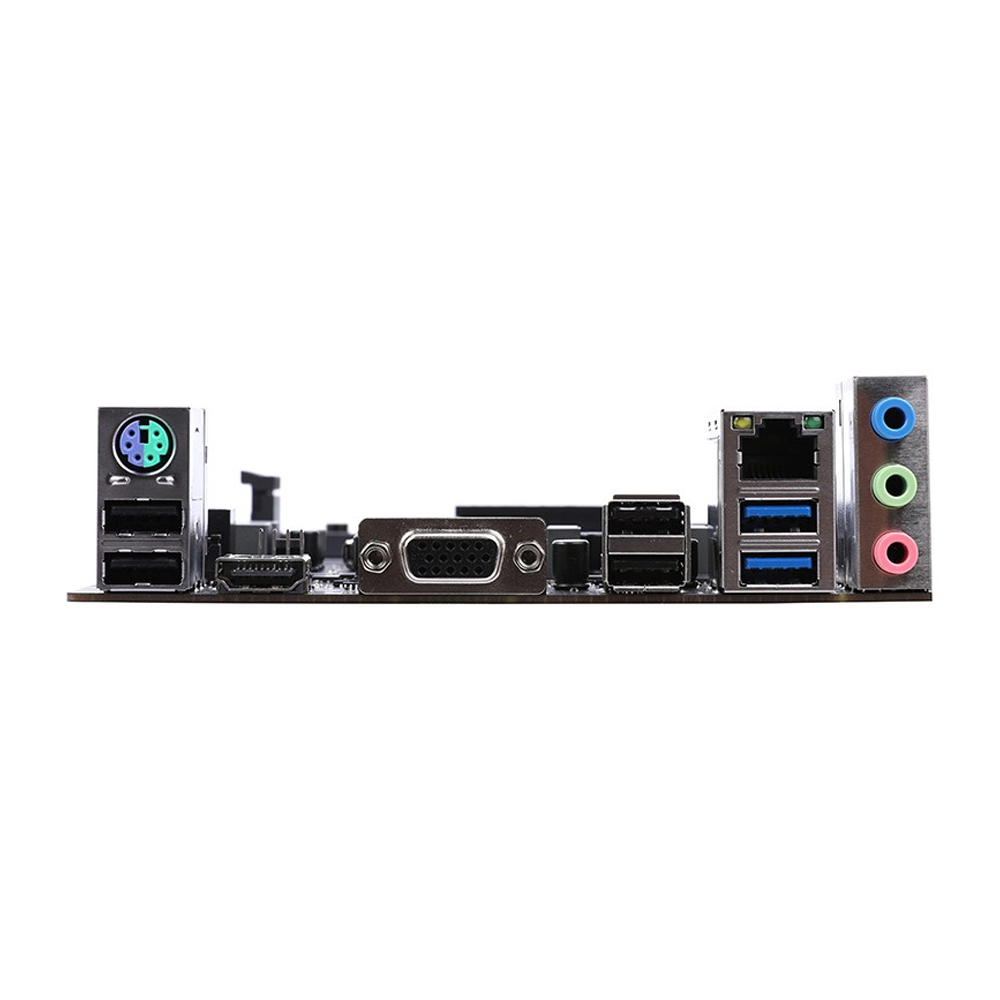

| Cổng giao tiếp ngoài | 1xPS2 port;1xHDMI port,1xVGA port; 4xUSB 2.0 ports,2xUSB 3.2 Gen1 ports; 1xRJ45 1000M LAN; 3xaudio ports; （onboard： 1xUSB2.0 header,1xUSB3.2 Gen1 header） |
| Âm thanh | 8-Channel (7.1) HD Audio with Audio Boost |
