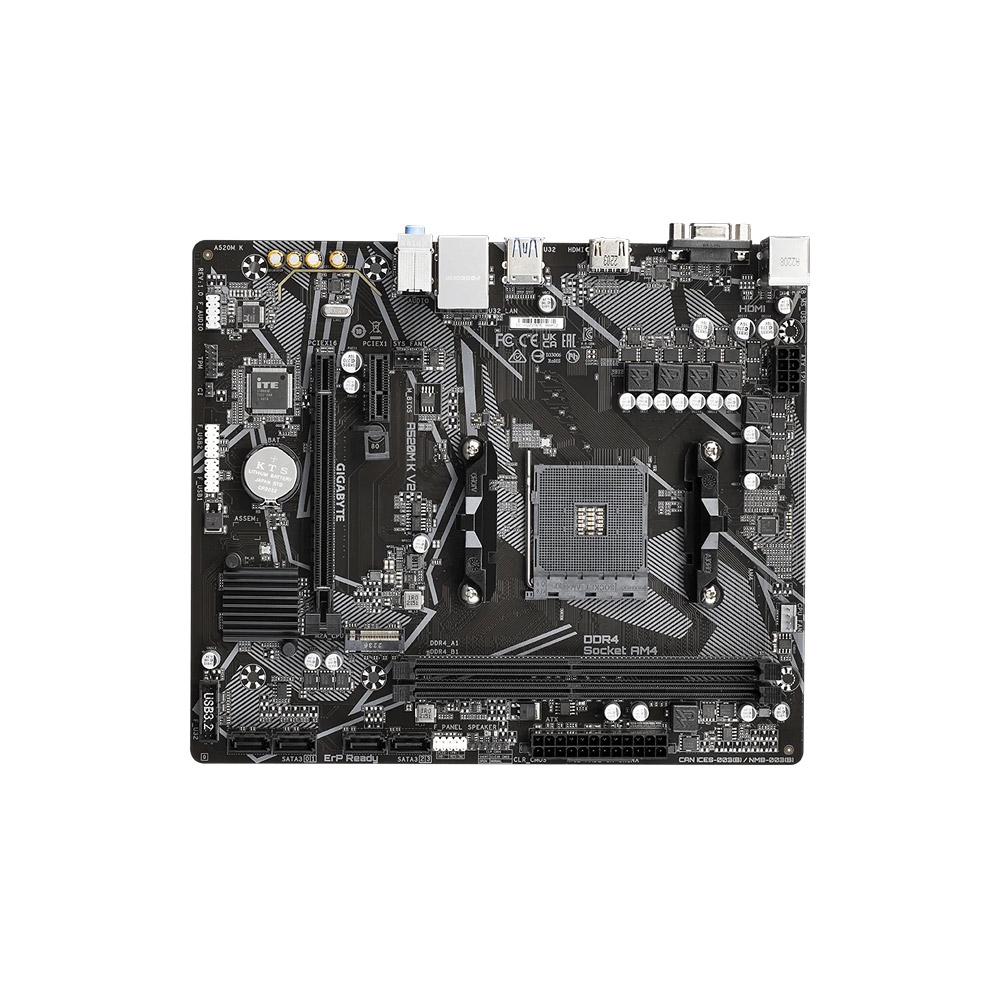

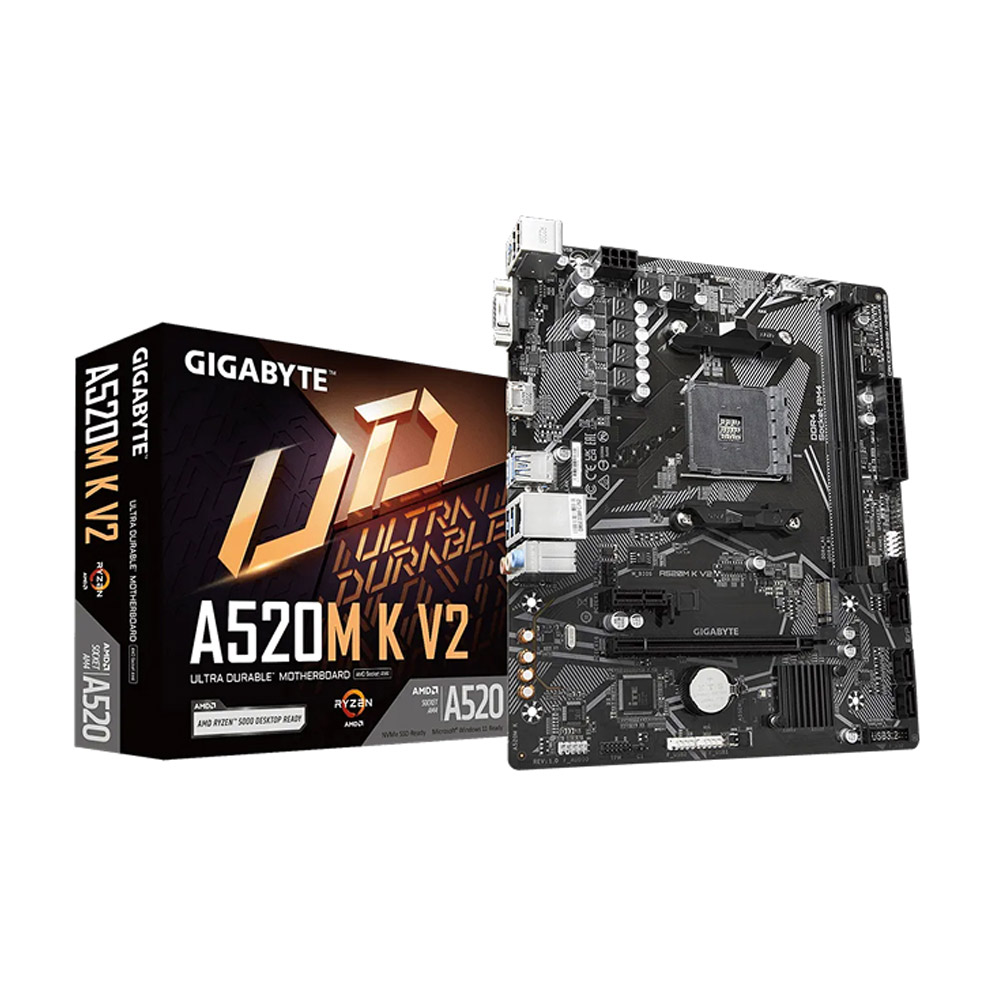

Cấu hình Mainboard Gigabyte A520M K V2 (AMD A520/ Socket AM4/ M-ATX/ 2 khe ram)
| Chipset | AMD A520 |
| Socket | Socket AM4 |
| Kích thước Main | M-ATX |
| Hỗ trợ CPU | AMD Socket AM4 dành cho máy tính để bàn AMD Ryzen™ Dòng 5000 / Dòng G 5000 / Dòng G 4000 / Dòng 3000 / Dòng G 3000 bộ vi xử lý |
| Khe cắm RAM | 2 khe ram |
| Loại RAM | DDR4 |
| Bus RAM hỗ trợ | 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture |
| Chi tiết Vga | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR |
| Kết nối mạng | 1Gb Ethernet |
| Thông số (Lan/Wireless) | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| Khe cắm trong | 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) |
| Khe cắm mở rộng | 1 x PCIe 3.0 x16 (chế độ x16),2 x PCIe 3.0 x1 |
| Cổng giao tiếp ngoài | CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Âm thanh | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
