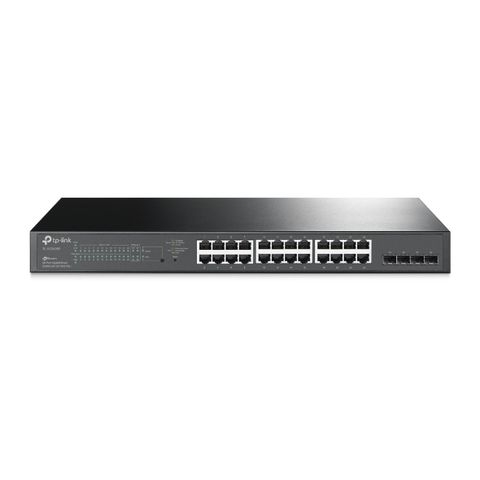

- Thiết Bị Mạng Switch TP-LINK TL-SG2428P 28-Port Gigabit Smart Switch JetStream with 24-Port PoE+
- 28-Port Gigabit Smart Switch JetStream with 24-Port PoE+ TP-LINK TL-SG2428P
- - 250W PoE Budget: 24 × 802.3at/af-compliant PoE+ ports with a total power supply of 250W.
- - Full Gigabit Ports: 24 × gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.
- - Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- - Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- - Static Routing: Helps route internal traffic for more efficient use of network resources.
- - Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- - Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- - IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.
-
Đặc tính kỹ thuật
Model TL-SG2428P Hardware features Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x Interface 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4× Gigabit SFP Slots Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF Fan Quantity 2 PoE+ Ports(RJ45) Standard: 802.3at/af compliant PoE+ Ports: 24 Ports Power Supply: 250 W Dimensions 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm) Mounting Rack Mountable Max Power Consumption 32.1 W (110 V/ 60 Hz with no PD connected) 308.6 W (110 V/ 60 Hz with 250 W PD connected) Max Heat Dissipation 109.53 BTU/h (with no PD connected) 1052.94 BTU/h (with 250 W PD connected) Performance Bandwidth/Backplane 56 Gbps Packet Forwarding Rate 41.7 Mpps MAC Address Table 8K Packet Buffer Memory 4.1 Mbit Jumbo Frame 9KB Software features Quality of Service Support 802.1p CoS/DSCP priority Support 8 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting IPv6 QoS Voice VLAN L2 and L2+ Features Static Routing DHCP Relay DHCP Server IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loopback detection 802.3x Flow Control LLDP, LLDP-MED VLAN Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) MAC/Protocol-based VLAN Access Control List L2–L4 package filtering MAC ACL IP ACL Combined ACL IPv6 ACL Security AAA Port Security DHCP Snooping IP-MAC-Port Binding IPv6-MAC-Port Binding ARP Inspection 802.1x and Radius Authentication SSH v1/v2 SSL v3/TLSv1.2 Broadcast/Multicast/Unknown-unicast Storm Control Dos Defend IPv6 Dual IPv4/IPv6 stack Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 Applications DHCPv6 Client Ping6 Tracert6 Telnet (v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP Management Omada App Yes Centralized Management Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) Management Features Web-based GUI and CLI management SNMP v1/v2c/v3,compatible with public MIBs and TP-Link private MIBs RMON (1, 2, 3, 9 groups) CPU Monitoring Port Mirroring Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS Dual Image EEE Others Certification CE, FCC, RoHS Package Contents TL-SG2428P Power Cord Installation Guide Rackmount Kit Rubber Feet System Requirements Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC® OS, NetWare®, UNIX® or Linux. Environment Operating Temperature: 0–50 ℃ (32–122 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
